Class: AtlasTexture
A texture atlas is a collection of textures that are packed into a single texture. This is useful for reducing the number of draw calls required to render a scene, since all block textures can be rendered with a single draw call.

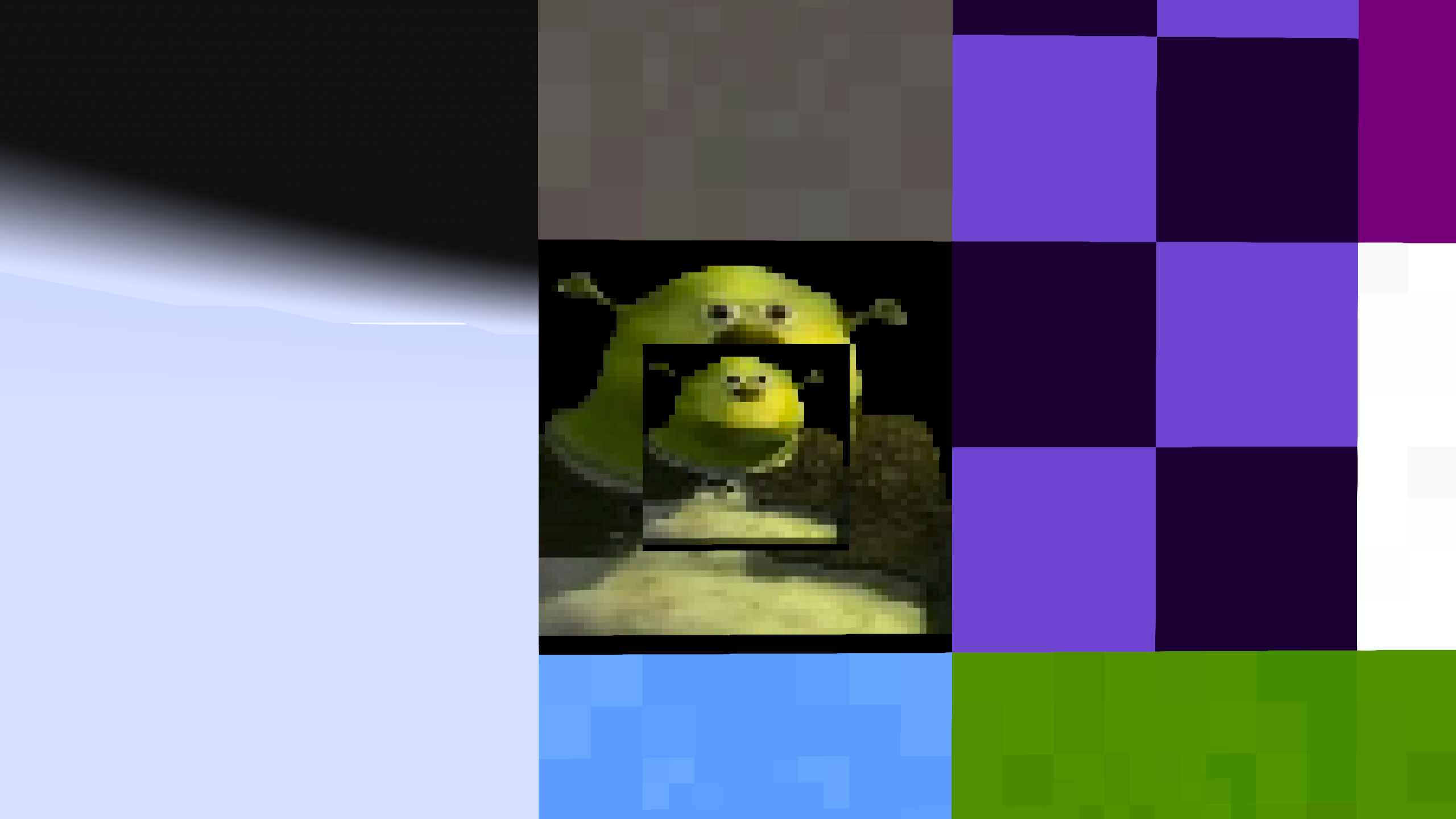

By default, the texture atlas creates an additional border around each texture to prevent texture bleeding.
Hierarchy
-
CanvasTexture↳
AtlasTexture
Constructors
constructor
• new AtlasTexture(countPerSide?, dimension?, canvas?, filtering?): AtlasTexture
Create a new texture this.
Parameters
| Name | Type | Default value |
|---|---|---|
countPerSide | number | 1 |
dimension | number | 1 |
canvas | HTMLCanvasElement | undefined |
filtering | AtlasFilteringMode | "nearest" |
Returns
The texture atlas generated.
Overrides
CanvasTexture.constructor
Properties
animationClock
• animationClock: () => number
Seconds the animated faces read their frame from. The world points it at its shared shader clock, so every client shows the same frame of the same water at the same moment; on its own it runs on local time.
Type declaration
▸ (): number
Returns
number
animations
• animations: { animation: FaceAnimation ; drawnFrame: number ; durationsMs: number[] ; patch: AtlasAnimationPatch ; timer: null }[] = []
The list of block animations that are being used by this texture atlas.
atlasMargin
• atlasMargin: number = 0
The margin between each block texture in the this.
atlasOffset
• atlasOffset: number = 0
The offset of each block's texture to the end of its border.
atlasRatio
• atlasRatio: number = 0
The ratio of the texture on the atlas to the original texture.
canvas
• canvas: HTMLCanvasElement
The canvas that is used to generate the texture this.
countPerSide
• countPerSide: number
The number of textures per side of the texture atlas
dimension
• dimension: number
Since the texture atlas is a square, the dimension is the length of one side.
Methods
applyFiltering
▸ applyFiltering(mode): void
Switches how this atlas samples at glancing angles. Safe to call on a
live atlas already bound to chunk materials (sets needsUpdate so the
next upload carries the new filter/mip settings) — an A/B run can flip
this without rebuilding the world. See WorldOptions.blockTextureFiltering.
Parameters
| Name | Type |
|---|---|
mode | AtlasFilteringMode |
Returns
void
copy
▸ copy(source): this
Carries the atlas geometry so clone() yields a faithful atlas view
sharing the source's pixels, with independently settable repeat/offset
(how the held torch windows its flame strip). Animations deliberately do
not transfer: their timers drive the source's own offsets, and a clone
inheriting them would be fought over by two drivers.
Parameters
| Name | Type |
|---|---|
source | this |
Returns
this
Overrides
CanvasTexture.copy
drawImageToRange
▸ drawImageToRange(range, image, clearRect?, opacity?): void
Draw a texture to a range on the texture atlas.
Parameters
| Name | Type | Default value | Description |
|---|---|---|---|
range | UV | undefined | The range on the texture atlas to draw the texture to. |
image | Color | Texture<unknown> | HTMLCanvasElement | HTMLImageElement | (width?: number, height?: number) => HTMLImageElement | undefined | The texture to draw to the range. |
clearRect | boolean | true | - |
opacity | number | 1.0 | - |
Returns
void
fillRangeAsFallback
▸ fillRangeAsFallback(range, color): void
Paint range with a stand-in colour and remember that it is one, so a
later census still lists the slot as unpainted by its own art.
Parameters
| Name | Type |
|---|---|
range | UV |
color | Color |
Returns
void
flushAnimationPatches
▸ flushAnimationPatches(renderer): void
Parameters
| Name | Type |
|---|---|
renderer | WebGLRenderer |
Returns
void
isRangeFallback
▸ isRangeFallback(range): boolean
Whether range wears a fallback fill instead of its own texture.
Parameters
| Name | Type |
|---|---|
range | UV |
Returns
boolean
isRangePainted
▸ isRangePainted(range): boolean
Whether anything has been drawn into range since the atlas was built.
Parameters
| Name | Type |
|---|---|
range | UV |
Returns
boolean
makeUnknownImage
▸ makeUnknownImage(dimension, color1?, color2?): HTMLCanvasElement
Parameters
| Name | Type | Default value |
|---|---|---|
dimension | number | undefined |
color1 | string | "#FF00FF" |
color2 | string | "#000000" |
Returns
HTMLCanvasElement
makeUnknownTexture
▸ makeUnknownTexture(dimension): AtlasTexture
The magenta-and-black checker every surface with no texture yet is given. One instance serves all of them, so treat it as read-only: painting into it or disposing it reaches every one of those surfaces at once.
Parameters
| Name | Type |
|---|---|
dimension | number |
Returns
paintColor
▸ paintColor(color): void
Paints the entire canvas with a specified color using Three.js Color.
Parameters
| Name | Type | Description |
|---|---|---|
color | Color | A Three.js Color instance to use for painting. |
Returns
void
rangeTexelClasses
▸ rangeTexelClasses(range, cuts): TexelClasses
Whether range holds solid or translucent texels (see
classifyTexels): its painted pixels, every keyframe of an animation
playing there, or the opaque unknown checker while nothing is painted.
Parameters
| Name | Type |
|---|---|
range | UV |
cuts | TexelAlphaCuts |
Returns
readRangePixels
▸ readRangePixels(range): Uint8ClampedArray<ArrayBufferLike>
The RGBA8 pixels painted inside range (its texture, without the
margin around it), or null while nothing has been painted there. One
small read of the atlas canvas.
Parameters
| Name | Type |
|---|---|
range | UV |
Returns
Uint8ClampedArray<ArrayBufferLike>
registerAnimation
▸ registerAnimation(range, keyframes, fadeFrames?): void
Parameters
| Name | Type | Default value |
|---|---|---|
range | UV | undefined |
keyframes | [number, Color | HTMLImageElement][] | undefined |
fadeFrames | number | 0 |
Returns
void
tickAnimations
▸ tickAnimations(seconds?): void
Draws whichever animated faces changed frame since the last call, read off animationClock. Called once a frame by the world; a face whose frame has not changed costs a lookup and nothing else.
Parameters
| Name | Type |
|---|---|
seconds | number |
Returns
void
